Industrial Wastewater Treatment System: Complete Guide for Manufacturers

Manufacturing wastewater is rarely a single, consistent stream. Depending on the production process, a factory may generate wastewater containing suspended solids, oil, heavy metals, acids, alkalis, high COD, dissolved salts, or other process-specific contaminants.

For manufacturers, choosing an Industrial Wastewater Treatment System is therefore not simply a matter of selecting individual treatment equipment. The system needs to match the wastewater characteristics, discharge requirements, water reuse targets, available space, and expected operating conditions.

What Is an Industrial Wastewater Treatment System?

An industrial wastewater treatment system is an engineered process used to remove contaminants from wastewater generated by manufacturing and industrial operations.

A typical Industrial Wastewater Treatment Process may include:

Collection & Equalization → Physical/Chemical Treatment → Filtration → Membrane Treatment → Advanced Treatment → Water Reuse or Discharge

The actual configuration varies significantly between industries. Electroplating wastewater, semiconductor wastewater, battery manufacturing wastewater, and chemical wastewater should not be treated using the same process simply because their flow rates are similar.

How Do Manufacturers Choose the Right Treatment Process?

The first step should be wastewater characterization rather than equipment selection.

Important parameters may include:

• Flow rate and daily operating pattern
• pH, COD and suspended solids
• TDS and major ions
• Heavy metals
• Oil and organic contaminants
• Temperature
• Required discharge limits
• Target water recovery rate

For facilities planning industrial water reuse, membrane technologies such as UF and RO can be integrated after suitable pretreatment. When salinity becomes too high for conventional membrane treatment, concentration, evaporation, or ZLD technologies may be considered.

In practice, stable pretreatment is particularly important. Poor solids or oil removal can increase membrane fouling, cleaning frequency, and operating costs downstream.

Case Study: 107 m³/day Industrial Wastewater Treatment System

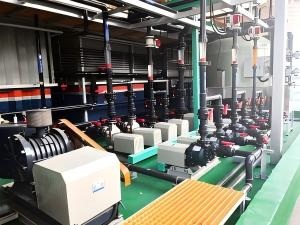

Eragon Enviro Tech provided an industrial wastewater treatment system for a manufacturing facility with a treatment capacity of 107 m³/day.

The system was designed to treat the facility's industrial wastewater and ensure the treated effluent met the applicable local wastewater discharge requirements before final discharge.

Project Highlights

• Capacity: 107 m³/day
• Application: Industrial wastewater treatment
• Objective: Compliant wastewater discharge
• Result: Treated effluent meets the required discharge standards

It shows that an Industrial Wastewater Treatment Plant may involve much more than end-of-pipe treatment. In advanced manufacturing, wastewater treatment, water recycling, pure water, and UPW can form part of a broader industrial water management strategy.

For a closer look at ERAGON's approach to factory wastewater treatment, see our Industrial Wastewater Treatment Solutions for Factories.

What Makes an Industrial Wastewater System Reliable?

A high treatment capacity does not necessarily mean a good system. Long-term performance depends on how well the process handles actual operating fluctuations.

Manufacturers should consider:

1. Pretreatment stability

Effective removal of solids, oil, and other contaminants protects downstream equipment.

2. Process flexibility

Production changes can alter both wastewater flow and composition. The treatment system should allow reasonable operating adjustment.

3. Membrane protection

UF and RO systems can provide effective water recovery, but their performance depends strongly on feedwater quality.

4. Concentrate management

High-TDS streams and RO concentrate may require further concentration, recovery, or ZLD treatment.

5. Long-term operating cost

Chemical consumption, energy use, membrane replacement, cleaning, maintenance, and sludge disposal should be considered during design—not after commissioning.

For projects involving high-salinity wastewater or ZLD, ERAGON also provides advanced concentration solutions such as MVR Evaporation Systems.

Industrial Wastewater Treatment Is a System, Not a Single Machine

There is no universal Wastewater Treatment System for Factories.

The appropriate solution depends on the production process, wastewater composition, regulatory requirements, water reuse objectives, and operating conditions. A well-designed system should balance treatment performance, investment, footprint, energy consumption, and long-term reliability.

For manufacturers considering a new Industrial Wastewater Treatment System, wastewater analysis and process evaluation should come before equipment selection.

ERAGON ENVIRO TECH provides engineered industrial water and wastewater solutions covering process design, equipment manufacturing, system integration, and EPC delivery. The company has 20+ years of industry experience and more than 200 projects, serving industrial manufacturing, high-tech, electroplating, energy, chemical, and other applications.

FAQ

Q1: What industries need industrial wastewater treatment systems?

Common applications include semiconductor and electronics manufacturing, electroplating, battery and new-energy manufacturing, chemical production, metal processing, and other industries generating complex process wastewater.

Q2: How do I choose an industrial wastewater treatment system?

Start with wastewater characterization, including flow rate, pH, COD, TDS, suspended solids, metals, oil, temperature, and the required discharge or reuse quality. The treatment process should then be designed around these conditions.

Q3: Can industrial wastewater be recycled?

Yes. Depending on wastewater characteristics and the intended reuse point, treatment may combine physical and chemical treatment, UF, RO, advanced polishing, concentration, or other technologies to recover water for suitable industrial applications.
