Skid-mounted BWRO systems are designed for reliable desalination of brackish water where TDS, hardness, and dissolved salts require stable removal.
The integrated skid package enables fast installation, consistent water quality, and efficient operation for industrial and municipal applications. The system is typically supplied as a skid-mounted package and can also be integrated into a containerized enclosure upon request for flexible transportation and rapid on-site deployment.
We provide engineering support including system selection guidance, feed water analysis suggestions, and configuration optimization based on project requirements.
Skid-Mounted Brackish Water Reverse Osmosis (BWRO) System

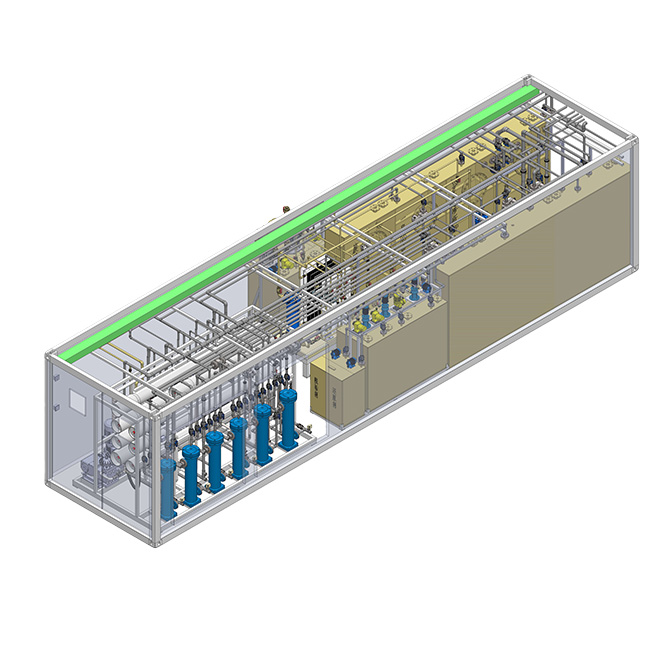

The skid-mounted BWRO system integrates pretreatment, high-pressure RO membrane separation, and control units into a single compact package.

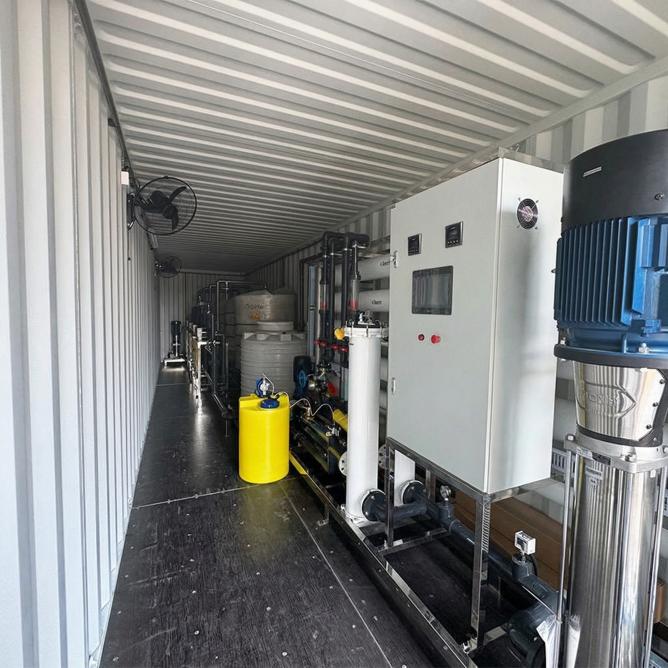

It is engineered to treat brackish water with elevated TDS and dissolved salts, delivering consistent permeate quality while maintaining efficient energy consumption and stable system performance. Depending on project requirements, the BWRO system can be delivered in skid-mounted or containerized configuration, supporting modular installation, transportation efficiency, and outdoor operation.
Key Features

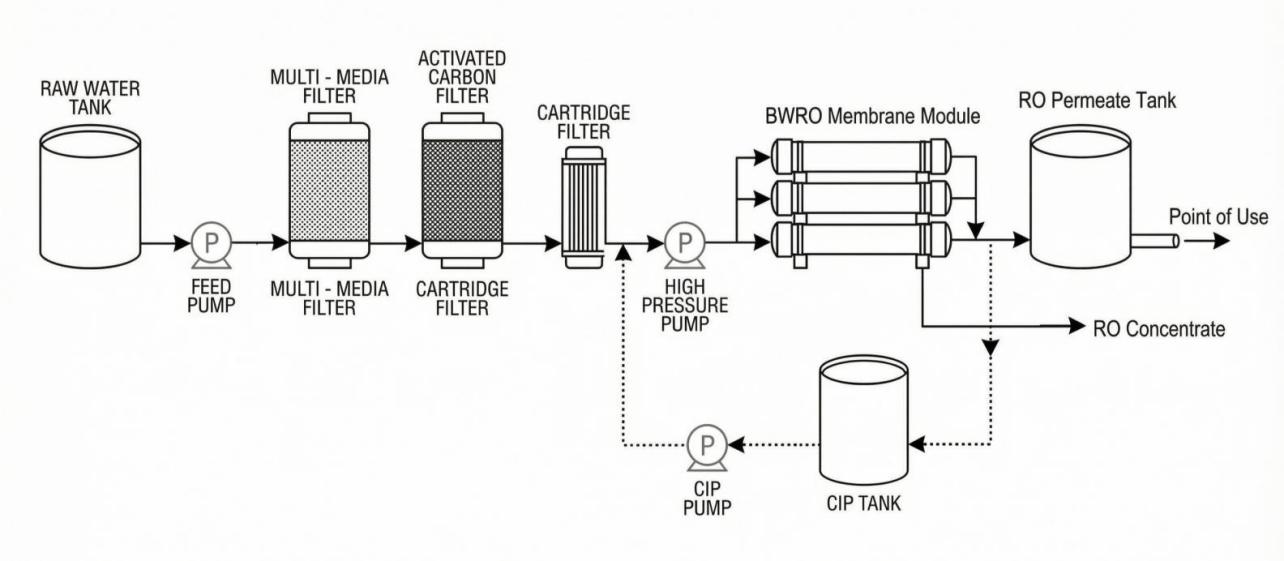

BWRO System Process Overview
Step 1 – Feed Water Pretreatment
Raw brackish water passes through multimedia, activated carbon, and cartridge filters to remove suspended solids, organics, and fine particles.
Step 2 – High-Pressure Pumping
Pretreated feed water is pressurized to meet the operating requirements of the BWRO membrane system.
Step 3 – Brackish Water Reverse Osmosis
Pressurized water flows through BWRO membrane modules, separating dissolved salts and impurities from the permeate stream.
Step 4 – Permeate Collection
Desalinated permeate is collected in the RO permeate tank and supplied to downstream points of use.
Step 5 – Concentrate Discharge
Concentrated brine is discharged or directed to further treatment, depending on project requirements.
Step 6 – CIP Cleaning
A dedicated CIP loop allows periodic chemical cleaning to maintain stable membrane performance and service life.
System Placement
• Water Source
Brackish groundwater / well water / slightly saline surface water
• Process Role
Core RO desalination unit for TDS reduction
• Downstream Use
Industrial process water, municipal supply, irrigation, or polishing (EDI / mixed bed)
Typical Applications
• Brackish groundwater desalination for industrial process water
• Municipal or community drinking water supply (with post-treatment if required)
• Pretreatment for high-purity water systems (UPW / boiler feed / utilities)• Agricultural irrigation water desalination
• Water reuse and utility water upgrade projects
• Remote sites requiring compact, skid-mounted desalination packages
Technical Specifications
The following performance data is based on standard testing conditions. Actual performance may vary depending on feed water quality and operating parameters.
| Model | EET-BWRO-M50 | EET-BWRO-M100 | EET-BWRO-M200 | EET-BWRO-M300 | EET-BWRO-M500 |
| Capacity | 50 m3/d | 100 m3/d | 200 m3/d | 300 m3/d | 500 m3/d |
| Feed Inlet Connection | DN32 | DN50 | DN65 | DN80 | DN100 |
| RO Permeate Outlet Connection | DN25 | DN32 | DN40 | DN50 | DN65 |
| RO Concentrate Outlet Connection | DN25 | DN25 | DN32 | DN40 | DN65 |
| L x W x H (in./ mm) | 236x94x114 / 6000x2400x2900 | 236x94x114 / 6000x2400x2900 | 236x94x114 / 6000x2400x2900 | 236x94x114 / 6000x2400x2900 | 472x94x114 / 12000x2400x2900 |
| Container Size (ft) | 20 | 20 | 20 | 20 | 40 |
| Operating Parameters | Recovery Rate: 50%-75% |
| Salt Rejection: 99% | |
| Design Temperature: 25°C | |
| Operating temperature: 15-40°C | |
| Feed Water TDS: < 15000 mg/l | |
| Minimum Feed Pressure: 2 bar |
| Materials | High-pressure Piping: SS304 / SS316L |
| Low-pressure Piping: uPVC | |
| Skid Frame: SS304 | |
| Electric Control Cabinet: IP54 | |
| Pretreatment Filter Housing: FRP | |
| RO Pressure Vessel: FRP, 300 / 450 / 600 psi (21 / 31 / 41 bar) |
| Optional Configurations | 1. Pretreatment Options: DAF / High-Gradient Magnetic Separation (HGMS) | |
| 2. Booster Pump System | 3. Product Water Transfer System | |
| 4. Post-treatment: Remineralization System | 5. Two-Year Spare Parts Kit | |
Note: Final configuration may vary based on feed water quality and site conditions.
