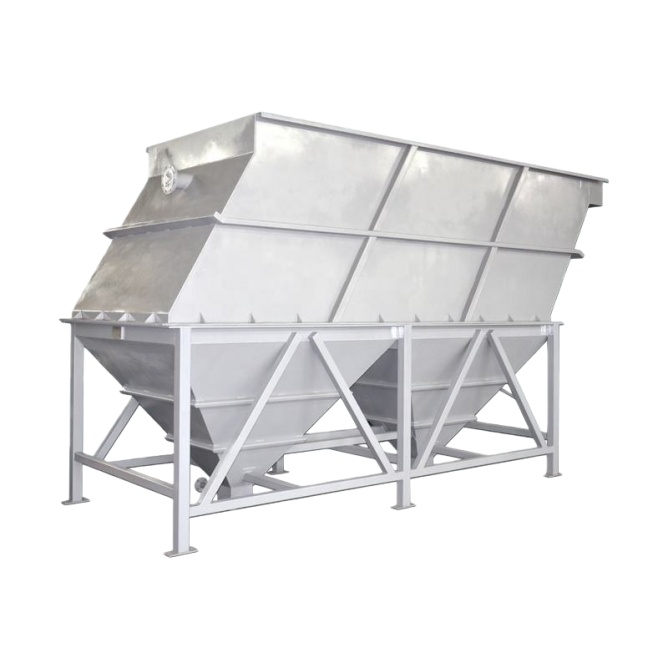

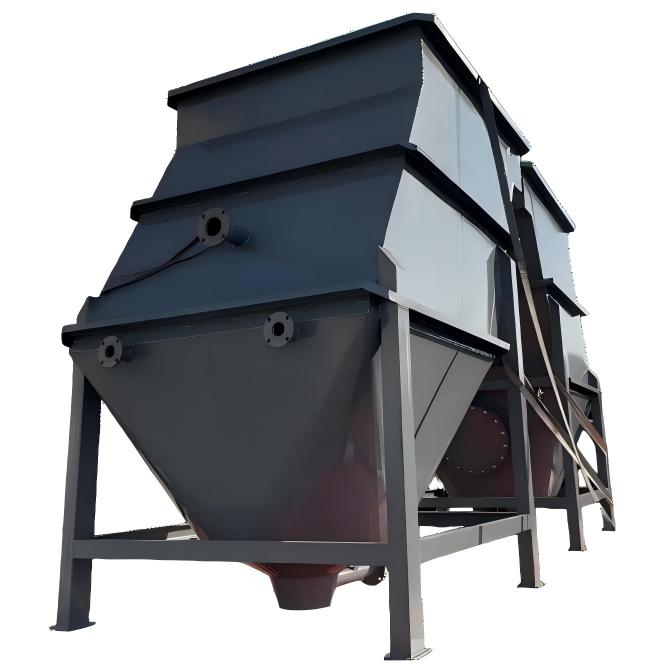

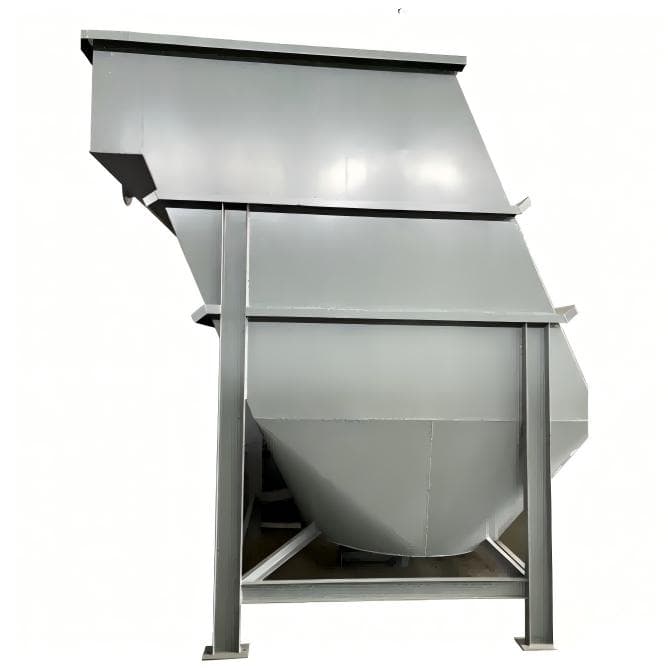

EET Lamella Clarifier – High-Efficiency Inclined Plate Clarification System
The EET Lamella Clarifier consists of multiple inclined plates arranged in parallel to increase effective settling area within a compact tank.
It accelerates particle settling and sludge collection, making it suitable for industrial wastewater treatment where space, efficiency, and stability are critical.
Key Features
System Placement
• Installed after coagulation / flocculation for rapid solid-liquid separation
• Used as a compact replacement for traditional settling tanks
• Applied before media filtration, UF/RO membranes, or DAF polishing when lower SS is required
• Often integrated with sludge thickening / dewatering downstream
Typical Applications
• Municipal wastewater primary or secondary clarification
• Industrial effluent clarification (textile, food & beverage, plating, etc.)
• Stormwater and runoff solids removal
• Groundwater and surface water clarification
• Pre-treatment for membrane filtration systems

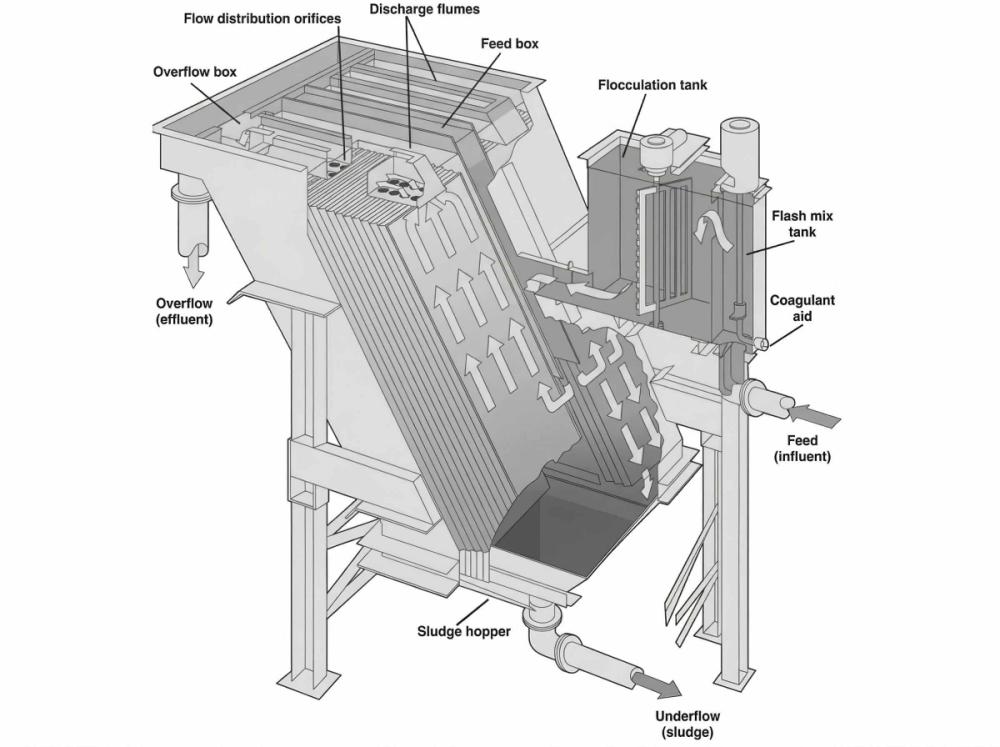

Lamella Clarifier Working Principle
Step 1 – Influent Distribution
Raw water enters the clarifier and is evenly distributed across the inlet zone.
Step 2 – Inclined Plate Settling
Suspended solids settle onto the inclined plates, reducing settling distance and increasing separation efficiency.
Step 3 – Sludge Collection
Settled solids slide down the plates and accumulate in the sludge hopper.
Step 4 – Clarified Effluent Discharge
Clarified water overflows from the top and is collected for downstream treatment.
Technical Specifications
| Model | Capacity | Dimensions (m) | Sludge scraper | Nozzle List (DN, GB/JIS/ANSI) | ||||||
| m3/h | L | W |
LMX1 H |
LMX2 H/H1 |
Motor Power kW |
Inlet | Outlet | Sludge Outlet | Backwash | |
| EET-X005 | 5 | 2.6 | 1.6 | 2.9 | 3.4/2.5 | 0.25 | 80 | 50 | 50 | 50 |
| EET-X010 | 10 | 3.4 | 1.8 | 3.6 | 3.8/3.0 | 0.25 | 100 | 80 | 50 | 50 |
| EET-X020 | 20 | 3.4 | 2.2 | 3.6 | 3.8/3.0 | 0.25 | 150 | 100 | 50 | 50 |
| EET-X030 | 30 | 4.2 | 2.2 | 4.0 | 3.8/3.0 | 0.25 | 150 | 150 | 50 | 50 |
| EET-X040 | 40 | 4.0 | 2.8 | 4.0 | 3.8/3.0 | 0.25 | 200 | 150 | 50 | 50 |
| EET-X050 | 50 | 4.7 | 2.8 | 4.0 | 3.8/3.0 | 0.25 | 200 | 200 | 50 | 50 |
| EET-X060 | 60 | 4.8 | 3.0 | 4.0 | 3.8/3.0 | 0.25 | 250 | 200 | 50 | 50 |
| EET-X080 | 80 | 5.1 | 3.4 | 4.0 | 4.0/3.2 | 0.25 | 250 | 200 | 80 | 50 |
| EET-X090 | 90 | 6.3 | 3.0 | 4.0 | 4.0/3.2 | 0.25×2 | 250 | 250 | 80x2 | 50 |
| EET-X100 | 100 | 7.1 | 3.0 | 4.0 | 4.0/3.2 | 0.25×2 | 250 | 250 | 80x2 | 50 |
| EET-X120 | 120 | 8.3 | 3.2 | 4.0 | 4.0/3.2 | 0.25×2 | 300 | 300 | 80x2 | 50 |
| EET-X150 | 150 | 9.8 | 3.2 | 4.0 | 4.0/3.2 | 0.25×2 | 350 | 300 | 80x2 | 50 |
Note: Final configuration may vary based on feed water quality and site conditions.
